|LED Chips:||2835 Epistar||Applying:||Embeded|
|Beam Angle:||120&Deg.||Life Time:||15000hrs|
slim panel light,
round led panel light

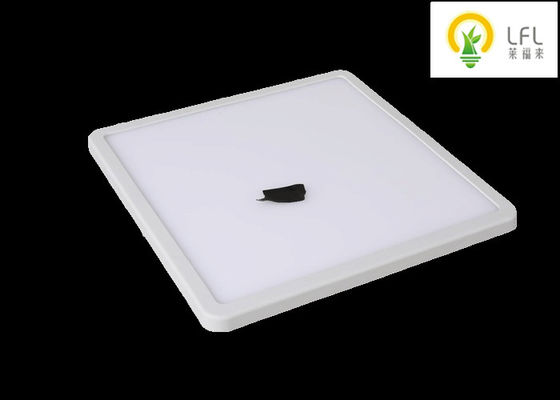

Easy replacement Free cut hole LED downlight 15W 1020lm 2 inch to 6inch downlight square Panel
A. Easy replacement : Can be suitable to the any cut hole size from D50-D100 .
B. Diffuser plate: PCmaterial from Japan Mitsubishi is used. The 1.5mm ultrathin diffuser pate has a light transmittance of up to 92%, and gentle light diffusion can effectively reduce fatigue and create the light environment.
C. Light guide plate: using Mitsubishi material, thickness 4mm with high precision laser dot, make the light even and comfortable, no dark space, can effectively protect the eyes.
D. Reflective sheeting(round and fan-shape): the Hp LCD TV backlight reflective sheeting has superstrong light reflection,with thickness of 0.25mm-0.55mm.
E. Placed cashions: the soft polyurethane foam rubber, sealing, good elastic memory, high temperature resistant, fire retardant, effectively fixed lamp body internal optical components.
F. Rear cover: 0.8mm iron back cover, dumb white,fine Elizabeth Barbara ohm two kind of spraying process, spray evenly overall sense.
G. Driver: low-voltage constant-current intelligent IC driver is used, which is of integated desing and make of the imported PC maderial,with dust prevention, compression resistance and high temperature resistance. Ambient temperature for working:-20°C-85°C
1. SMD 2835
2. 65lm-75lm/w, CRI>80
3.Cut hole size : suitble to D50 -210mm;
4. Lighting technic: side light emitting technic .
5. Material : Aluminum+ PC+PS light guide
|Model No.||Voltage||Power||PF||Color temperture||Lumen output||CRI||materials||Size(mm)||Cut hole(mm)||Qty./Ct||Carton Size|
|DF-2306-BF||175-264V||6||0.5||3000-3500K/4000-4200K/6000/6500K||350lm||>70||Plastics Ring+Aluminum back cover+light guide+diffusor||100*100*20||￠50-90||100||62.5*29*22.5|
1. The springs can slide along the rails and can suitable to the all size hole size from Diameter 50mm to 210mm;
2. Slime and good looking
3. Driver back carry and easy for exchange .
1.Using high lumen SMD light source high intensity aluminum shell,fast heating.
2.Using good reflectivity super thin, super bright LGP which make the lights more equally.
3.Low voltage and constant current driver, no glare the light is soft.
4.Launch in 0.01sec, no flashing, no noise, no radiation. Energy saving,and environmental.
5.This product can show high brightness, without seeing the lamp itself.
Household, exhibition hall, hotel, shops,jewelry store, museums, stores and recreational space,etc
