86-264V Energy Saving LED Slim Panel 20W 1500lm Aluminum Material

I'm Online Chat Now
China Xiamen Longing for Light Import & Export Co., Ltd. certification
China Xiamen Longing for Light Import & Export Co., Ltd. certification
You are the best representative of Chinese supplier

—— Ivvone

I believe it is ok

—— Alain

Dear Shally, yes, the brightness is the best. Have you a flat modell with the same brightness and reflector. Thanks and best regards Gerd

—— Gerd

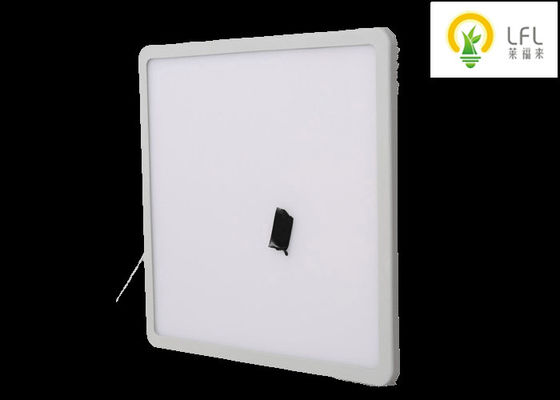

86-264V Energy Saving LED Slim Panel 20W 1500lm Aluminum Material

86-264V Energy Saving LED Slim Panel 20W 1500lm Aluminum Material
86-264V Energy Saving LED Slim Panel 20W 1500lm Aluminum Material 86-264V Energy Saving LED Slim Panel 20W 1500lm Aluminum Material

Large Image :  86-264V Energy Saving LED Slim Panel 20W 1500lm Aluminum Material Get Best Price

Product Details:
Place of Origin: Xiamen ,China
Brand Name: LFL
Certification: CE RoHS
Model Number: PL-3D5-6
Payment & Shipping Terms:
Minimum Order Quantity: 200
Packaging Details: color box , 50pcs in one carton box
Delivery Time: 10-18working days
Supply Ability: 3000pcs per day
Detailed Product Description
Light Source: LED Material: Aluminum
LED Chips: 2835 Epistar Applying: Embeded
Size: 230*230*20mm Hole Dimension: D50-210mm
Power: 20W Voltage: 86-264V
CRI: 80 Lumen Output: 1500lm
Beam Angle: 120&Deg. Life Span: 15000hrs
High Light:

slim panel light

,

round led panel light

Easy replacement Free cut hole LED downlight 20W 1500lm 2 inch to 8inch downlight square Panel



86-264V Energy Saving LED Slim Panel 20W 1500lm Aluminum Material 0



86-264V Energy Saving LED Slim Panel 20W 1500lm Aluminum Material 1





A. Easy replacement : Can be suitable to the  any cut hole size from D50-D100 .
B. Diffuser plate: PCmaterial from Japan Mitsubishi is used. The 1.5mm ultrathin diffuser pate has a light transmittance of up to 92%, and gentle light diffusion can effectively reduce fatigue and create the light environment.
C. Light guide plate: using Mitsubishi material, thickness 4mm with high precision laser dot, make the light even and comfortable, no dark space, can effectively protect the eyes.
D. Reflective sheeting(round and fan-shape): the Hp LCD TV backlight reflective sheeting has superstrong light reflection,with thickness of 0.25mm-0.55mm.
E. Placed cashions: the soft polyurethane foam rubber, sealing, good elastic memory, high temperature resistant, fire retardant, effectively fixed lamp body internal optical components.
F. Rear cover: 0.8mm iron back cover, dumb white,fine Elizabeth Barbara ohm two kind of spraying process, spray evenly overall sense.
G. Driver: low-voltage constant-current intelligent IC driver is used, which is of integated desing and make of the imported PC maderial,with dust prevention, compression resistance and high temperature resistance. Ambient temperature for working:-20°C-85°C

Specifications
1. SMD 2835
2. 65lm-75lm/w, CRI>80

3.Cut hole size : suitble to D50 -210mm;

4. Lighting technic: side light emitting technic .

5. Material : Aluminum+ PC+PS light guide





Model No. Voltage Power PF Color temperture Lumen output CRI materials Size(mm) Cut hole(mm) Qty./Ct Carton Size
DF-2306-BF 175-264V 6 0.5 3000-3500K/4000-4200K/6000/6500K 350lm >70 Plastics Ring+Aluminum back cover+light guide+diffusor 100*100*20 ¢50-90 100 62.5*29*22.5
DF-2308-BF 175-264V 8 0.5 480lm >70 118*118*20 ¢50-100 100 62.5*29*26.5
DF-2315-BF 175-264V 15 0.5 1020lm >70 175*175*20 ¢50-160 40 57*37*19.5
DF-2320-BF 175-264V 20 0.5 1500lm >70 230*230*20 ¢50-210 20 48*29*25

Advantage :



1. The springs can slide along the rails and can suitable to the all size hole size from Diameter 50mm to          210mm;

2. Slime and good looking

3. Driver back carry and easy for exchange .



Product features
1.Using high lumen SMD light source high intensity aluminum shell,fast heating.
2.Using good reflectivity super thin, super bright LGP which make the lights more equally.
3.Low voltage and constant current driver, no glare the light is soft.
4.Launch in 0.01sec, no flashing, no noise, no radiation. Energy saving,and environmental.
5.This product can show high brightness, without seeing the lamp itself.

Suitable for
Household, exhibition hall, hotel, shops,jewelry store, museums, stores and recreational space,etc
