Product Details:
Payment & Shipping Terms:
|
| Material: | Plastics +metal | Power: | 9W/18w/22w |
|---|---|---|---|
| Voltage: | 86~264V 50/60 Hz | Light Efficienvy: | 90lm/W |
| Length: | 600MM/1200MM/1500MM | THD: | <15% |
| LIFE SPAN: | 25000HRS | Cover Size: | 125mm*1220mm*65mm |
| High Light: | led tube bracket,led batten tube light |
||

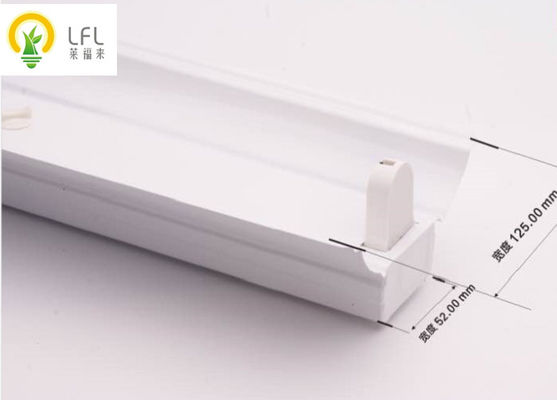

Single tube fitting with cover blackboard Tube bracket 1.2M/0.6M LED T8 tube
Product specification
| SERIES | Type | MODEL | SIZE(MM) | Power loading | MATERIAL | Lamp BASE | MOQ |
| LED T8 tube Bracket with dust cover | 1.2M | CB-1200-001 | 1220*125*65 | Single/double loaded | Iron thickness 0.3mm | G13 | 2500 |
| 0.6M | CB-0600-001 | 620*125*65 | Single/double loaded | G13 | 2500 |
Product Feature
Details
Applying :
Adapting light source:LED T8 fluorescent lamp tube (diameter 26MM/32MM). Product length of 0.6 meters, 0.9 meters, 1.2 meters, three kinds of specifications;
The bracket cover and the base are fixed together by screws, and are very firm, and the internal use of 0.5 square copper core wires and three terminal posts is used to facilitate the access of the power cable.
Emergency power supply device can be installed according to customer requirements;
Packing: neutral packing20pcs or 60pcs per carton.
Installation: hanging installation, ceiling wall installation;
With the accembly package .
Bracket advantages:
1, Metals thickness if around 0.3mm , and painting thickness is 0.04mm to make sure of protection the metal ;
2. The stock of the materials no more than 3 month and brackets , no more than 2 month before shipping ;
3. Tools inspection after 100K punching .
Factory adantages:
1, Automatics tools for punching holes , high efficiency and low manual cost ;
2, Own Painting ,Cutting , Punching , Assembly, QC, International Sales Team
3, Absolute Service Dept for pre-sale service and after service
4, Production Capacity: LED tube light 300, 000PCS/Month
5, IS09001-2008 Management system
6, Over 15 years listed company engineer sevice for Jorich
Remark:
1, This is the Eco series , we try best to provide the high valued product to bring profit for customer .
2, Here shipped mainly on facotry package , and lamp based hiden in metal tube to save space and protection , if you have demand on the package , pls let us know.
