12W Commercial White LED Track Lighting , High Efficiency LED Ceiling Track Lights

I'm Online Chat Now
China Xiamen Longing for Light Import & Export Co., Ltd. certification
China Xiamen Longing for Light Import & Export Co., Ltd. certification
You are the best representative of Chinese supplier

—— Ivvone

I believe it is ok

—— Alain

Dear Shally, yes, the brightness is the best. Have you a flat modell with the same brightness and reflector. Thanks and best regards Gerd

—— Gerd

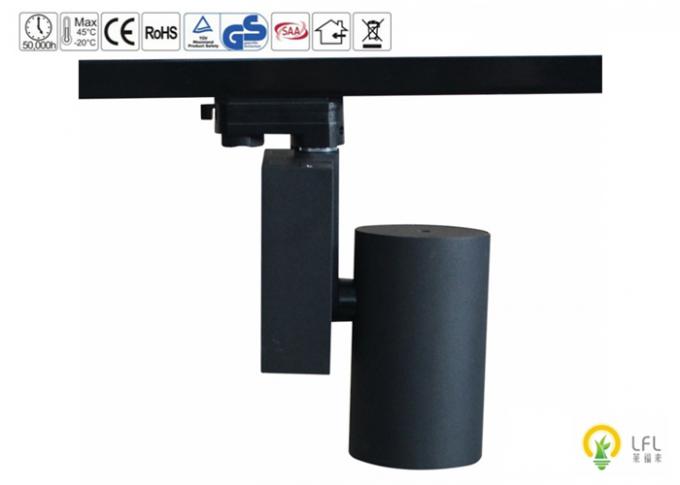

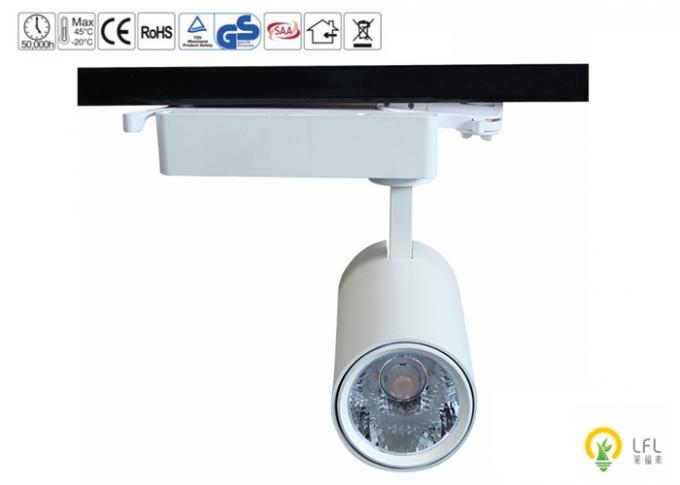

12W Commercial White LED Track Lighting , High Efficiency LED Ceiling Track Lights

12W Commercial White LED Track Lighting , High Efficiency LED Ceiling Track Lights
12W Commercial White LED Track Lighting , High Efficiency LED Ceiling Track Lights

Large Image :  12W Commercial White LED Track Lighting , High Efficiency LED Ceiling Track Lights Get Best Price

Product Details:
Place of Origin: Xiamen , China
Brand Name: LFL
Certification: CE,Rohs ,TUV ,SGS
Model Number: C58-12W
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Price: 28USD$/pcs
Packaging Details: 1pcs per pack
Payment Terms: Western Union
Detailed Product Description
Voltage: 100-277V Power: 12W
Lumen Output: 1200lm CRI: 85,90,92,97
Material: Diecasting Aluminum + PC Light Efficiency: 100lm/watt
Warrenty: 5Yrs Dimension: D66*165mm
High Light:

black led track lighting

,

commercial led track lighting

12W Commercial White LED Track Lighting , High Efficiency LED Ceiling Track Lights











Product Description :



Ø Light source can be 150lm/w .complete luminaire is 90-100m/w

Ø UGR test<19, anti- glare, friendly to your eyes

Ø THD<10/<15

Ø CRI 80 /90 /97 are available

Ø Flicker free



Model Number LFL-TL-12W-C58-A
Power 12/15/20/25w
Input voltage AC200-240V/50-60Hz
Size(mm) D66 L165
Light efficient 90-100lm per watt actually test
LED brand Citizen/Cree/Bridgelux/Epistar
CCT 2700/3000/3500/4000/5000K
CRI 83/90/97Ra
SDCM <3
Beam angle 15/24/38
Driver used Tridonic/Osram//Lifud
Power factor >0.95
Power efficient 88-91%
THD <10/<15
Dimmable Triac/0-10V
Material Dia-casting aluminum
Housing color White/black/silver
Certification TUV/CE/SAA/RoHS/CB/ENEC
Test data IES/LDT/ Integrating sphere
Warranty 3/5years
IP 44





Temperature



  • The testing is operated at 25°C
  • The lifetime of capacitor, minimum of 8,000 hours if operated at 105°C, will be doubled whenever the temperature drops 10°C
  • The highest withstand temperature of IC, MOS could be 120°C
  • The highest withstand temperature of LED junction temperature is 150°C

Instructions



  • We have many types accessories like ‘T’ or ‘I ’or ‘X’etc ,it can connect more easily
  • When you want to lay out the track connector in the ceiling ,you can refer to this diagram.
  • It can be used in the showrooms and shopping mall and supermarket etc .Any commercial spot is suitable
  • We also can provide the track connector ,if you need it .i will send it with your track order

12W Commercial White LED Track Lighting , High Efficiency LED Ceiling Track Lights 012W Commercial White LED Track Lighting , High Efficiency LED Ceiling Track Lights 1

Advantages

  • Heat dissipation and excellent thermal performance .
  • High luminous efficiency .the product cooling system designed guarantee internal led light source working stable .And the LED’s luminous flux and luminous efficiency has been significantly improved
  • CRI 80/90/97 are available. Use citizen that LM80 approved cob chips from Japan original, thermoelectric separation design, high reliability,light decline is small. long life span
  • Shape design concise and fluent, suitable for various environmental style collocation.



Warranty

  • 5 years warranty, please call us if have any questions during the warranty, We will find out the problem and solve it.
  • We will give you free replacements within warranty once broken.



Our Services

  • OEM & ODM are accepted.
  • Your inquiry related to our products will be replied within 24 hours.
  • Protection of your sales area, ideas of design and your private information.
  • Any suggestion or comment of our product or our service will be highly appreciated.

Ø Tech Support & After-sale E-mail: web@longingforlight.com.





Power and Size Available



Power/Watt Size G.W(Kg)/pc G.W/Carton (Kg) Pcs/Carton
12/15/20/25w 66*165mm 0.7Kgs 21.5Kg 32pcs
