Product Details:
Payment & Shipping Terms:
|
| LED Efficacy: | 160Lm/W | Solar Panel Power: | 18V 35W |
|---|---|---|---|
| LEDs: | 5050 Or 3030 | Dimensions(mm): | 1076x340x43 |
| NET Weight(kg): | 11.5kg | Packing Size(mm): | 850x415x125 |
| Gross Weight(kg): | 8.7kg | Body Material: | Die-casting Alumium |
| High Light: | 3030 LED Commercial Outdoor Lighting,5050 LED Commercial Outdoor Lighting,35w commercial grade solar lights |
||

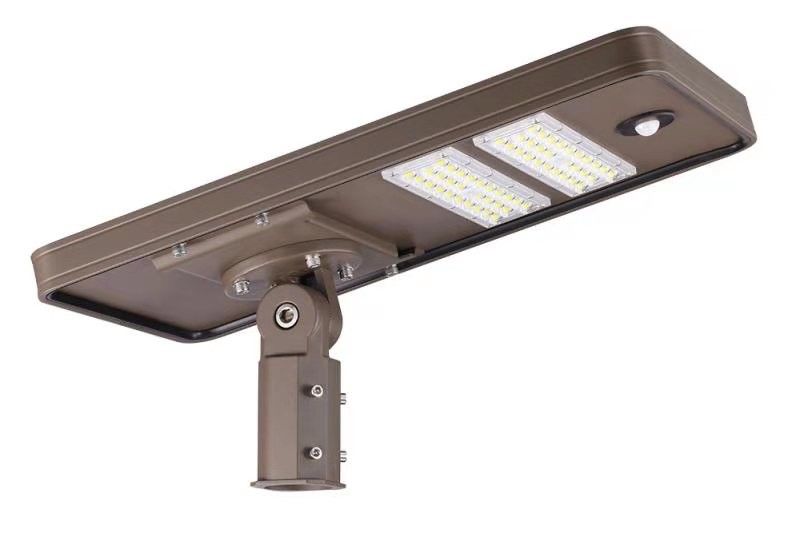

IR sensor 30W led flood light Commercial LED Outdoor Lighting
Installation Precautions
1. Before installing, please understand this manual carefully and be familiar with the product parameters and attributes.
2. The lamp must be fixed strong, avoid lamp loose cause danger in future.
3. After finishing installation, Pls switch on the lamp, it will work automatically.
4. Eliminate unprofessional person to disassemble the lamp body privately, occurrence accident consequence conceit.
5. Please choose a place that is full of sunlight and can be completely exposed to the sun. Notice that the solar panels can not be covered, and must be exposed to the sun.
6. Please contact the after-sales staff in time for quality problems.
Product Info
| Model# | SJC-QX4K | SJC-QX6K | SJC-QX8K | SJC-QX10K |
| Lumen | 4000lm | 6000lm | 8000lm | 10000lm |
| Solar panel power | 18V 35W | 18V 45W | 18V 63W | 18V 75W |
| Li-on battery | 11.1V 18AH | 11.1V 26AH | 11.1V 36AH | 11.1V 45AH |
| LEDs | 5050 or 3030 | 5050 or 3030 | 5050 or 3030 | 5050 or 3030 |
| LED Efficacy | 160Lm/W | 160Lm/W | 160Lm/W | 160Lm/W |
| Dimensions(mm) | 626x340x43 | 770x340x43 | 1076x340x43 | 1197x410x43 |
| NET Weight(kg) | 7.2kg | 11.5kg | 13.5kg | 15.5kg |
| Packing size(mm) | 850x415x125 | 1000x415x125 | 1305x415x125 | 1420x485x125 |
| Gross Weight(kg) | 8.7kg | 13.5kg | 15.5kg | 17kg |
| 20' GP | 440 sets | 360 sets | 270 sets | 230 sets |
| Solar panel | Monocrystalline silicon | |||
| Body Material | Die-casting Alumium | |||
| Optical Distribution | Type III | |||
| Working Temp. | -20℃ ～ +60℃ | |||
| Color Temperature | 3000k - 4000k - 5000k - 5500k - 6000k | |||
| Control Mode | PIR + Light control + Time control | |||
| Charging time | 6-8 Hour (sunlight enough) | |||
| Working time | ≥ 36 Hour | |||
| Mounting height | 6m-9m / Pole diameter Ø60 mm | |||
1. Maintenance
(1) Solar controller is the core component of solar street lights, which has the function of light control, time control, charging and discharging, etc. Keep it dry in use, and do not touch the buttons at discretion. Malfunction must operate in professional instruction.
(2) Solar panel is the longest life span component in the solar street light, which can be used for more than 25 years. And in use if it doesn't rain for days, the surface of the solar panel will gather much dust, which will affect the power generating efficiency, need manual cleaning when necessary. Keep the solar panel towards the south, correct it timely if there is swing.
(3) LED light source has a long service life, general failure rate is extremely low. Dirt cleaning of the whole light source is needed when using 2 to 3 years in case the dirt resists electricity and reduce the brightness of lights.
(4) The battery itself has certain self-discharge, when the All In One Solar Light is not in use for a long time, please take out the light regularly for charging in the sun.
MPPT Charging Technology
MPPT means: Maximum power point tracking .It’s a highly advanced loading methods.
The MPPT controller can detect the energy generated by the solar panel in real time and track more values.
High voltage and current. It has an efficiency tracking rate of more than 99 percent, allowing the system to charge the battery for maximum efficiency. Compared with the traditional PWM controller, the MPPT controller can maximize the power of the panel, so it can provide a greater current charge. In general, using MPPT can increase energy consumption by 15%-20% compared with PWM controller.
It has 10 percent longer battery life than the first generation.
