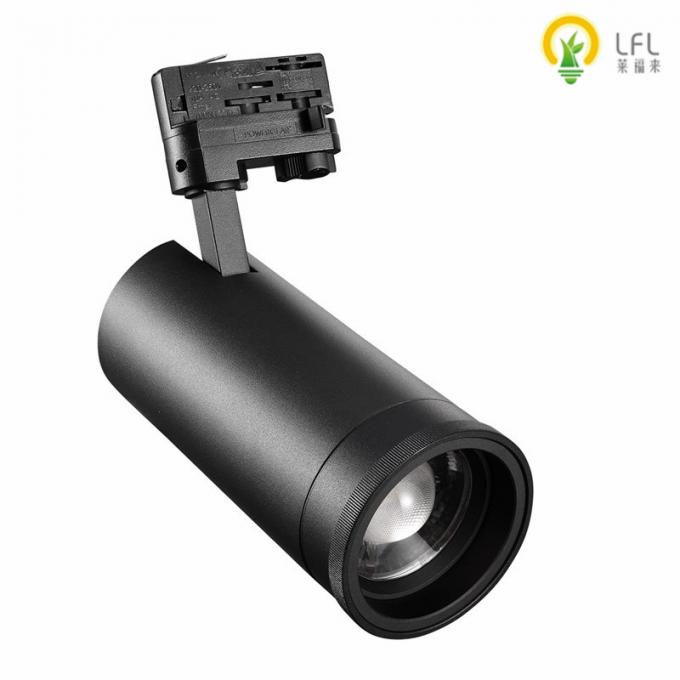

New Zoomable track lighting with dimmable swithes 5yrs warrenty
LFL-TL30/35A90 originally researched
and developed by Powerstar,
high-end spotlight with interior driver.
90mm diameter face cover,
integrated molded lamp housing of aluminum,
use international top COB CITIZEN/LUMINUS
Advanced design of ultra-thin hybrid optical lens,
with first-rate lighting control effect,

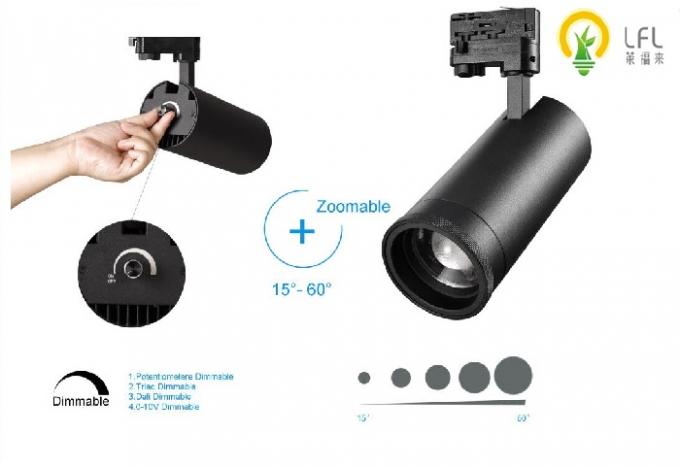

various beam angle 15-60degree zoomable .
stable specifications, glare-free, good heat sink,
brilliant quality, more than 50,000 hours life span.
ü Highest CRI 90, Low SDCM<3
ü High efficiency, high illuminance
ü Glare-free design, perfect light spot and adjustable beam angle, make surroundings of comfortable illumination
ü Flicker free driver for superior surrounding lighting requirement
ü Integrated molded light housing with convective holes for better heat dissipation, interior driver, low-temperature operation guaranteed
ü Rotatable horizontal 355° and vertical 90°
- The under the BBL is the standard of the product performance outcome,we can achieved it
- our target is to do below of the BBL Product .it needs technology to deal with .it belongs to special design
- we can make CRI 80/83/90/97,CCT 2700/3000/3500/4000/5000/5700/6500k are available.

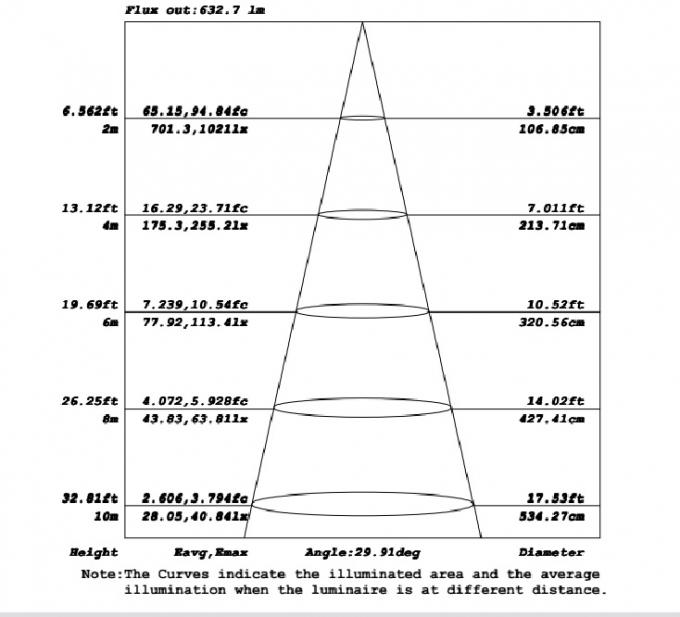

IES test report
- Highest CRI 97, Low SDCM<3
- High efficiency, high illuminance 145LM/W
- Glare-free design, perfect light spot and accurate beam angle, make surroundings of comfortable illumination
- Flicker free driver for superior surrounding lighting requirement
- Integrated molded light housing with convective holes for better heat dissipation, interior driver, low-temperature operation guaranteed
- Rotatable horizontal 355° and vertical 90°
Wattage: 35W Lumen: 135-145lm/w
PF: >0.9 Input: AC220-240V 50-60Hz
SDCM: <3 Beam angle: 20°/30°/45°/60°
THD: <15 Color rendering index: 83/92/97Ra
IP Rate: IP20 Dimming: NON /Traic/0/1-10V/DALI
Protection class: Ⅱ Housing Color: Black/White
Warranty: 5 years Operation temperature: ‐20℃―50℃
Connector: 2 wires/3 wires/4 wires/6wires
Color temperature: 2700K/3000K/3500K/4000K/5000K
||Folding carton box
||Shipping carton box
|Dimensions(L* W* H)

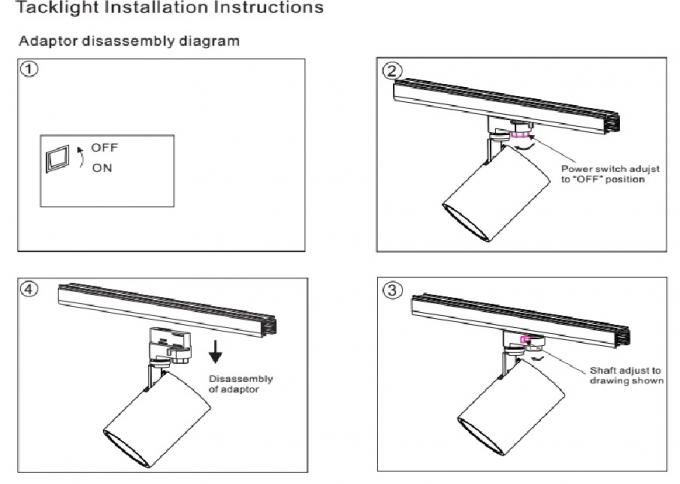

- Turn off the power.
- Take out the trim of the trackligt
- Connect the driver to the main supply per spec (AC85-265V / 50Hz-60Hz)
- Put LED driver at suitable place on ceiling and push the light to the ceiling
- Lock the screw by the electric screw driver.
- Install the trim of the tracklight and then turn on the power.
- When install the tracklight by technical professionals.
- Power should be cut off before installation,maintenance or inspection.
- Please install and use the tracklight strictly according to the instruction
- Do not disassemble or remold the product at will to avoid accident of
electric shock or light fallig
- 5 years warranty , please call us if have any question during the warranty, We will find out the problem and solve it.
- we will give you free driver or tracklihgt if the driver or tracklight has been broken within the warranty replace with a new one if both are broken.
- OEM & ODM, superior bespoke product only for you!
- Your inquiry related to our products will be replied within 24 hours.
- Protection of your sales area, ideas of design and your private information.
- Any suggestion or comment of our product or our service will be highly appreciated.
