Product Details:
Payment & Shipping Terms:
|
| Material: | Glass+metal | Power: | 9W/18w/22w |
|---|---|---|---|
| Voltage: | 86~264V 50/60 Hz | PF: | >0.5 |
| Lumen Output: | 800 | Light Efficienvy: | 90lm/W |
| Length: | 600MM/1200MM/1500MM | THD: | <15% |
| LIFE SPAN: | 25000HRS | LENS: | FROSTED |
| High Light: | led tube bracket,led batten tube light |
||

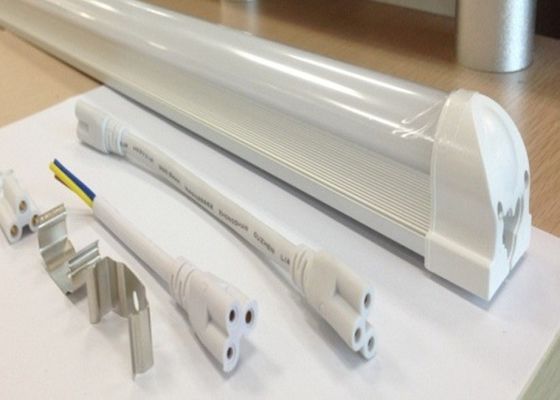

LED T8 Tube batten 1.2m 18W 1800lm metal glass high efficiency low cost
Product specification
| Model | BT-T8A-60CM | BT-T8A-90CM | PBT-T8A-120CM | PBT-T8A-150CM |
| Wattage | 10W | 14W | 18W | 22W |
| Lumen | 1100lm | 1600lm | 2000lm | 2400lm |
| Size | D26*L600mm | D26*L900mm | D26*L1200mm | D26*L1500mm |
| (L*W*Hmm) | ||||
| AC input | 165-265V / 85-265V | |||
| LED Chip | Epistar SMD2835 | |||
| Lamp Cover | GLASS Milky or transparent | |||
| IP Code | IP40 | |||
| Humidity Storage: | Humidity StorageHumidity Operating: 10-80% | |||
| Certification | CE, Rohs | |||
| Shell material | PAINTED METAL | |||
| lens | Frosted | |||
| Power Efficient | 0.9 | |||
| Beam angle | 270° | |||
| CRI | >75 | |||
| Color Temp. | 3000-6500K | |||
| Lifespan | 25000 hours | |||
Product Feature
1) Directly used . it can replace 36w inductance ballast daylight lamp .36w electronic ballast daylight lamp .
2) Saving the energy rate more than 60%,strong luminance .
3) PC environment protection material of the optical level is applied to the tube material which can be recycled.
4) CE&Rohs ,No heavy metal, no mercury and lead pollution ,no radial disturb .
5) The special beam angle mixed design ,directly lighten, no noisy ,no flicker .
6) Special circuit design, avoid single LED affecting the whole led tube light efficiency .
7) Life time can up to 50000hours . No flickering
Driver inside
Quik Info:
1, LED chips imports from Taiwan Epistar
2, LEDs was packaged By Listed Company-Hongli Tronic
3, Arc-shape aluminum tube increases light-out(with patent)
4, Trough type for PCB no need heat-conducting glue again
5, Special circuit design is non-interfering whereon disabled LEDs
6, Japan imported oval shape PC without any darkness spot
7, Reinforced package play for sea, airport, express freight
8, CE&RoHS Ctick certificate
9, Offer 5 years Quality Guarantee at warranty terms
10, Male-female connector is convenient to replacement of driver
11, Offer OEM/ODM Service and Neutral packing
12, The Color of LED tube cap is optional(White/Green/clear milky )
LEDs Lumen Decrease:
1, Operation times(3000 House): 1%
2, Operation times(5000 House): 4%
3, Operation times(20000 House): 10%
4, Operation times(40000 House): 20%
LED tube advantages:
1, High lumen+high CRI+Isolated driver
2, High precise current source(± 2%)
3, Overvoltage protection
4, Short-circuit protection
5, Overload protection
6, Meet EU-EMC & LVD
7, Double insulated wire
8, Insulation device for driver
9, inflaming retarding LED tube cap
10, No obvious chromatic aberration
11, No any shadow and darkness spot
12, Single ended power design
13, Light failure at 50000 Hours(L70)
14, Convenient to install combined
15. Own patent for the batten degisn .
LED Factory Advantages:
1, Annually invest third of our profit in our R&D department
2, Own Design, Die-Casting, Assembly, QC, International Sales Team
3, Absolute Service Dept for pre-sale service and after service
4, Production Capacity: LED tube light 30, 000PCS/Month
5, IS09001-2008 Management system
6, Full automatic aging testing line.
7, Constant temperature humidity chamber testing machine
8, Over 15 years listed company engineer sevice for Jorich
Remark:
1, Product life time defined as when the Flux (Lm) output from general light is 80% Of the Flux (Lm) output from Initial light, then it is the end of the products life
2, In the same illumination (Lux), the 5W output power LED tube can instead of Thetraditional 14W fluorescent light, the 15W output power LED tube can instead of The traditional 28W fluorescent light
